A 10 Ft Boom Is Acted Upon by

Determine the tension in each cable and the reaction at the ball-and-socket. Dec 08 2020.

Solved A 10 Ft Boom Is Acted Upon By The 840 Lb Force Shown Dete Chegg Com

SOLUTION We have five unknowns and six equations of equilibrium but equilibrium is maintained M x 0.

. SOLVEDA 10 -ft boom is acted upon by the 840 -lb force shown. Question 1 A 10ft boom is acted upon by the 840lb force shown. We need to first a patrol the three party diagram for the being toe.

Like Report View Text Answer Jump To Question Problem 105 Hard Difficulty A 10 -ft boom is acted upon by the 840 -lb force shown. A 10 ft boom is acted upon by the vertical force of 840 lb and is held by two A 10 ft boom is acted upon by the vertical force of School California Polytechnic State University Pomona. SE 4 11 840 lb Fig.

Solution for A 10-ft boom is acted upon by the 840-lb force shown and is supported by a ball and socket at A. But equilibnum is maintained EM Free -Body Diagram. Determine the tension in each cable and the.

Determine the tension in each cable and the reaction at the ball-and-socket joint at A. The tension in cable BE is. Advanced Physics questions and answers.

The 6-m pole ABC is acted upon by a 455-N force as shown. A 10-ft boom is acted upon by the 840-lb force shown. STATUS Answered QUALITY Approved ANSWER RATING.

A 10-ft boom is acted upon by the 840-lb force Determine the tension in each cable and the reaction at the ball-and-socket joint at A. Assuming that cable CF is tensioned to 500 1b and the self-weight of the boom is 50 1bft as shown. A 10-ft boom is acted upon by the 840-Ib force shown.

B The reaction at the ballandsocket joint A. A 10-ft boom is acted upon by the 840-1b force shown. Togather detention in each cable and the reaction at the ball and socket joint A.

Students also viewed these Mechanics questions. 7j 6k BE 11 _6i 6i 6k 840 O 11001b 11001b _ë_6î. 4105 A 10-ft boom is acted upon by the 840 lb force shown.

Engineering Technology Mechanical Engineering. Ii Calculate the total axial shortening of member ABC report result in units of. Vector The length of the vector BD Vector The length of the vector BE Then.

This question was created from fnal_statics_fall_2019pdf. Permission required for reproduction or display. A 10-ft boom is acted upon by.

A 10-ft boom is acted upon by the 840-lb force shown. A 10-ft boom is acted upon by the 1000-1b force shown at point C. 6 ft E 6 ft 7 ft C 4 ft 40 lb Fig.

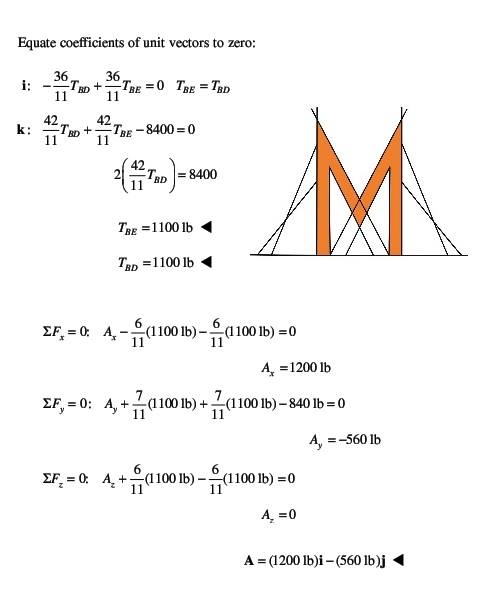

SOLUTION We have five unknowns and six equations of equilibrium. Determine the tension in each cable and the reaction at the ball-and-socket joint at A. I Determine the forces in cables BD and BE and the reactions at the ball-and-socket joint at A.

A Represent each force in Cartesian vector form b Setup clearly the equations of equilibrium c Determine the tension in each cable BD BE. Determine the tension in each cable and the reaction at the ball-and-socket joint at A. A 10-ft boom is acted upon by the 840-lb force shown.

Determine the tension in each cable and the reaction at the ball-and-socket joint at A. Please answer 4105 A 10-ft boom is acted upon by the 840-1b force shown. View the full answer.

This question was answered on. A 10-ft boom is acted upon by the 840-lb force shown. 4105 A 10-ft boom is acted upon by the 840-lb force shown.

Civil Engineering Solutions. Determine the tension in each cable and the reaction at the ball-and-socket joint at A. Determme the tension in cach cable and the leaclion at the ball-and-socket joint at A.

A The tension in the two cables BD and BE. Determine Problems the tension in each cable and the reaction at the ball-and-socket joint at A. Determine the tension in each cable and the reaction at the ball-and-socket joint at A.

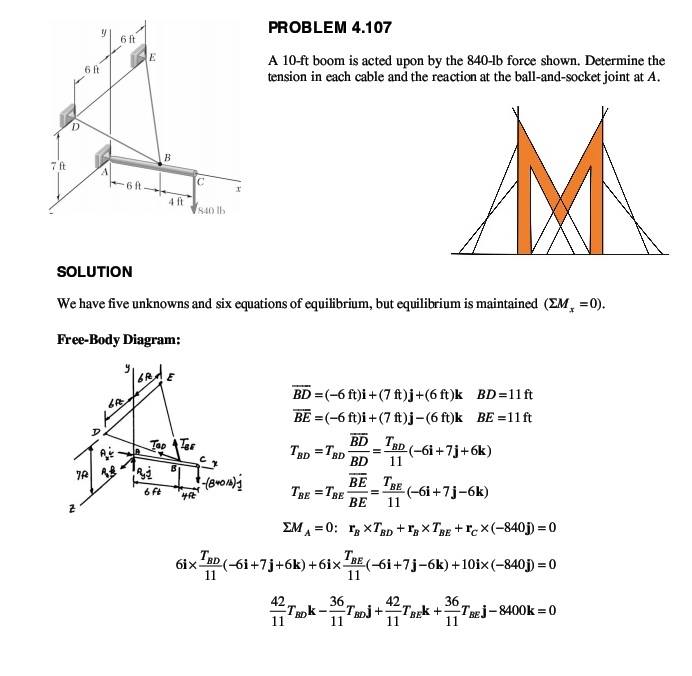

F PROBLEM 4105 A 10-ft boom is acted upon by the 840-lb force shown.
